Detail & Specifications
-
Self-bunded design for secure and environmentally friendly fluid containment. -
Built-in suction foot valve, overfill protection and electronic overfill alarm for enhanced safety.
-
Available in capacities from 16,000 to 22,000 litres.
-
Large access manway for easy and secure cleaning and maintenance.
-
Fully compliant with a wide range of international standards.
-
Fluid level dipsticks for tank and interstitial space.
-
Vent stack with screened rainproof outlet.
-
Bunded pump bay with lockable weatherproof doors.
-
Ladder is Standard
-
Built-in emergency vents
| Tank Models | Capacity Litres | Length mm | Width mm | Height mm | Weight kg | |
|---|---|---|---|---|---|---|
 |

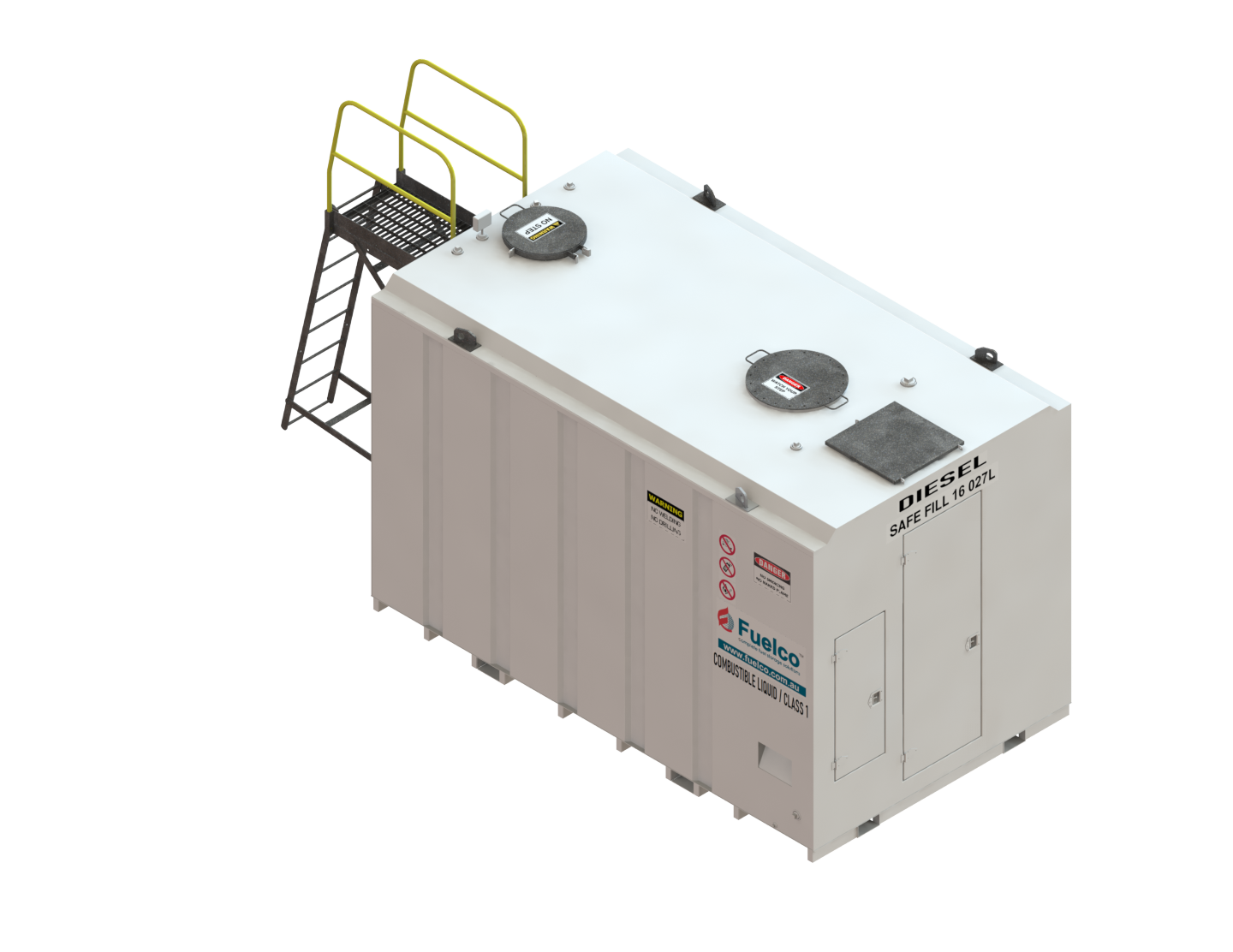

DC 16
|
15,200 SFL
|
3,950
|
2,300
|
2,494
|
4,200
|
|

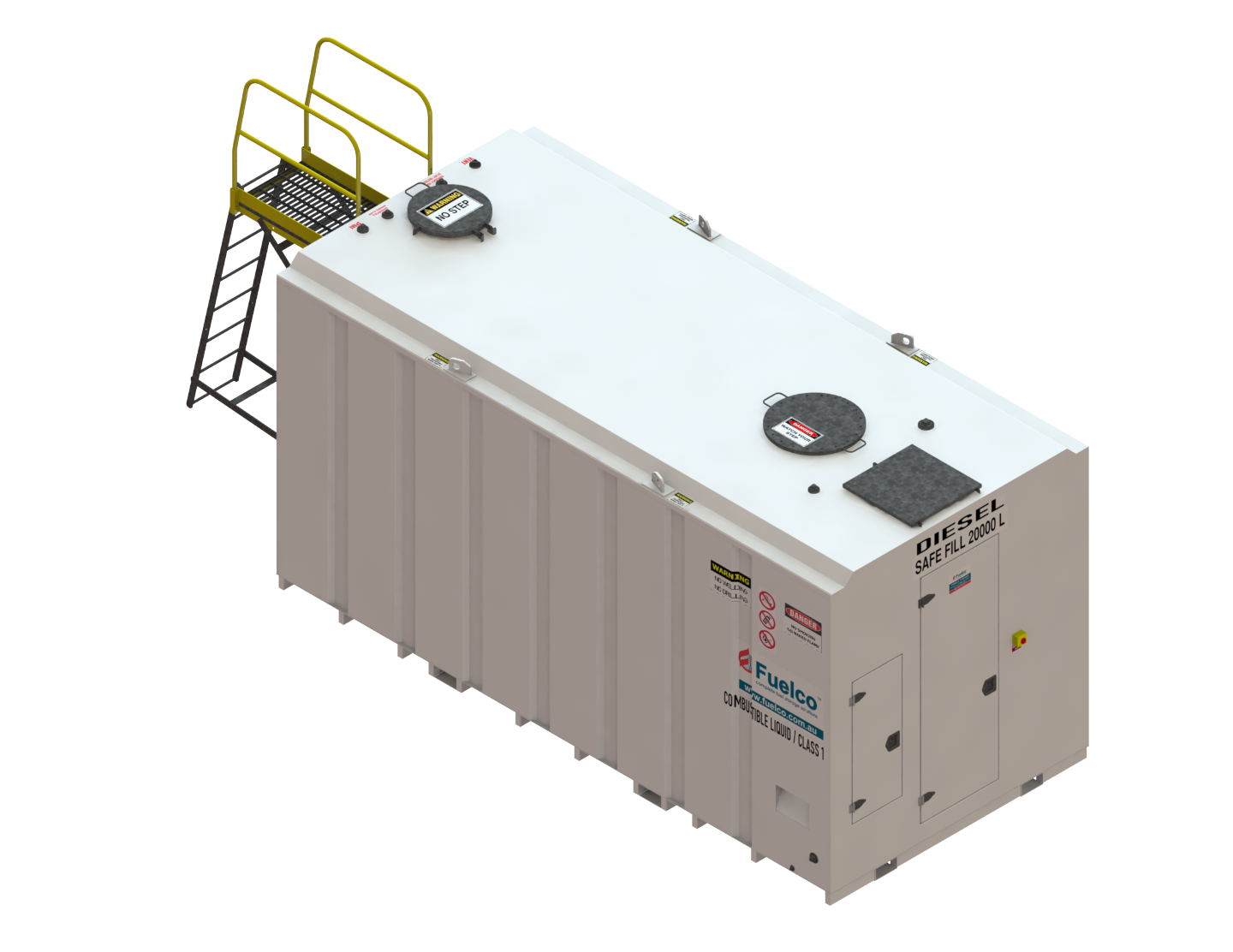

DC 22
|
20,000 SFL
|
4,950
|
2,300
|
2,494
|
4,930
|
